ĐẶC ĐIỂM NỔI BẬT EW 100 G4-865-S-B

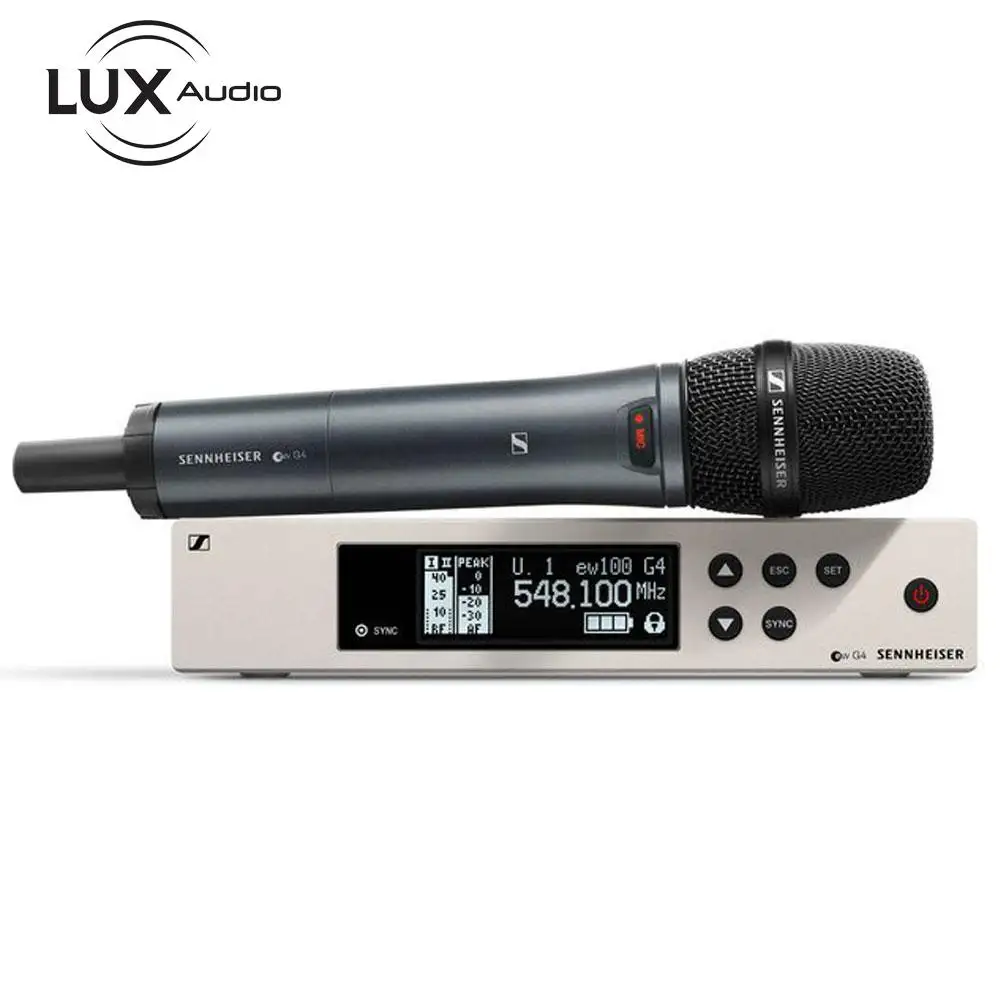

- Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
- State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch.
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Fast frequency allocation for up to 12 receivers via new linking functionality.
- Up to 20 compatible channels.
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
- Transmission Range: up to 100 meters / 300 feet.
- High RF output power (up to 30 mW) depending on country regulations.
THÔNG SỐ KỸ THUẬT
- Dimensions Approx. 190 x 212 x 43 mm
- Compander Sennheiser HDX
- THD, total harmonic distortion ≤ 0.9 %
- Weight Approx. 980 g
- Audio output 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Signal-to-noise ratio ≥ 110 dBA
- Switching bandwidth up to 42 MHz
- Peak deviation ±48 kHz
- Nominal deviation ±24 kHz
- Modulation Wideband FM
- Power supply 12 V DC
- Antenna connector 2 BNC sockets
- Current consumption 300 mA
- Adjacent channel rejection Typically ≥ 65 dB
- Intermodulation attenuation Typically ≥ 65 dB
- Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity < 2.5 μV for 52 dBA eff S/N
- Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
- Equalizer Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range -10 °C to +55 °C
- Receiver Principle True diversity
- Blocking ≥ 70 dB
